Temperature Controls
APPLICATIONS

Bag sealing
In sealing applications speed of recovery is very important. Each time the sealing jaws close heat is drawn away into the
product. The ability of the E5_C to read and react to any drop in temperature means that the quality of the seal is maintained
while operating at high or low speeds. In case of alarm or malfunction the bright blinking display is warning the operator
instantly so he can carry out counter measures.

Harsh environment
Control products can be subjected to harsh environments where they can be splashed during the process or covered in dust
or get warm through their location. The E5_C, E5CSV, H7CX, H5CX and K3HB all feature a NEMA4X (IP66 equivalent) front
panels so are suitable for the use in these applications, also the low profile fascia means that they are less prominent in the
front of the panel and so less likely to become dirty.

Oven control
External influences can cause the temperature to deviate from the required set value. With the E5_C it is possible to program
the level at which the display starts blinking. Alarm options include deviation from set point, where if the set point is changing
the alarm moves with it. Absolute alarms where they are referenced to 0, standby so the alarms will not be active during the
set point has been reached. Latching which means that once triggered they can only be deactivated by removing power. This
is ideal for remote or unmanned processes, as the alarm will remain until the machinery is next visited.

Baking oven
In many applications it is important to control the speed of approach to set point as well as maintain it at a preset time once
reached. This rate of rise control helps to prevent over cooking of the outside of the product. However multistage control is
not normally required. The E5_C contains a simple two stage function, controlling the rise to set point and also the sinking of
temperature versus time can be programmed.

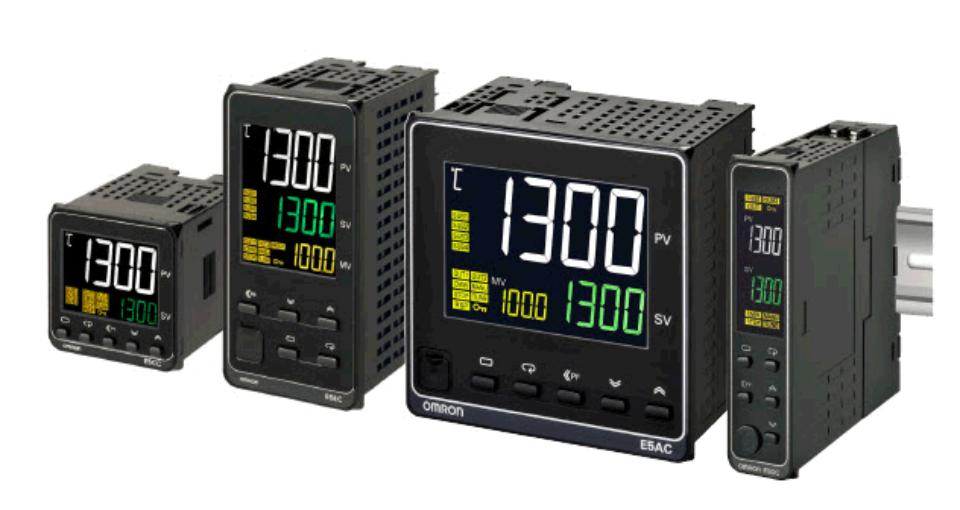

Omron E5CC/E5EC/E5AC Temperature Controls

The E5CC/E5EC/E5AC series will save you time and effort in setting up and operation, while enabling faster and more
accurate monitoring/control of your process. The high-visibility display of the new series is also extremely easy to read and
virtually eliminates any possibility of human error.
Features and benefits

  •    High-contrast, white LCD display visible from distances and from any angle
  •    Easy to set up without power supply and operate intuitively via CX-Thermo software
  •    50ms sampling for fast and precise regulation
  •    Practical alarm and diagnosis functions for secure operation

Faster input sampling and control period
This gives faster, more precise heater control in rapidly changing, disturbance-sensitive applications. With a sampling period
time of only 50ms any quick changing processes can be reliably regulated.

Process Value blinking display
This provides crystal-clear process status, even from a distance and without the need for interpreting the values. When one of
the heaters is not at set-point the Process Value can start blinking to alert any member of staff (detecting a bad sealing at an
early stage, for example).
Loop break alarm and sensor break alarm (with forced MV option)
In plastics production the tool used to make the product is changed quite often. Frequent reconnecting of the sensor or heater
can result in a wire break (a broken thermocouple, for example). These alarms quickly detect such problems in the process.

Basic (2-step) programmer
In many thermal processes (food, brick, pottery etc.) a small element of timing is required. This feature enables you to ramp up
to a set-point and set the dwell time period. At the end of this time, the process stops or continues with an indication alarm to
alert the operator. With this feature, a fixed minimum or maximum curing/baking time is assured in a smooth, controlled way.
Alternatively you can set different steepness for the ramp-down period, e.g. allowing a soft decrease of temperature to avoid
structural cracks of the heat treated object.

Easy to connect, set-up and operate
The E5_C series can be easily connected, set-up and operated in only a few steps using the instrument’s 5 front keys. Our
CX-Thermo software and useful navigation assistant for intuitive settings is allowing a very quick parameter setting, easier
device adjustment and simpler maintenance.

Push-In Plus Technology brings value to control panel
Push-In Plus termination allows E5CC-B and E5EC-B units to be mounted closer together as wire termination direction is
coming from the back of the controller rather than the side. This enables panel builders to reduce panel size if needed. This
results in greater efficiency from design to assembly, leading to lower internal costs for panel builders, end users and OEMs.
