MINI COIL HEATERS
Mini Coil Heaters
Mini coil heaters or mini band heaters lend themselves to a variety of
applications.  The most common application is nozzle heaters for hot
runner manifolds.  We have available a complete line of OEM

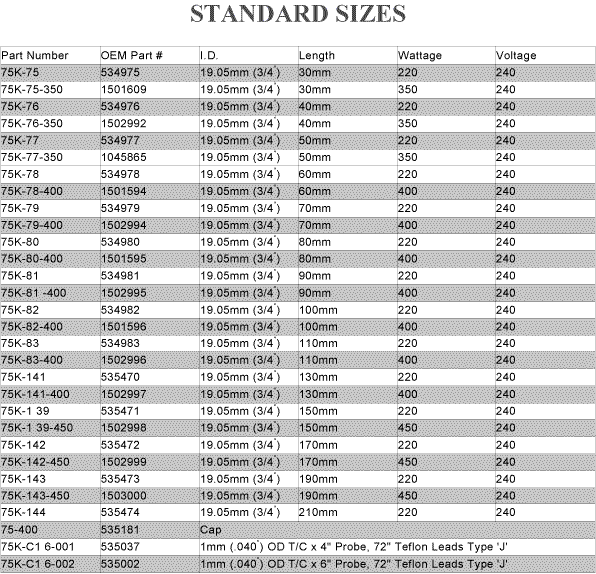

replacement heaters for Husky, Tradesco and others.  Below we
have listed the most common sizes.
TECHNICAL DATA

Insulation Material                                                      High Purity
Heating Elements                                                       NiCr 80:20 220 V

Voltage Range                                                           to 240 V

Power Rating                                                                168 W to 300 W

Power Tolerance                                                       +5%
High Voltage Strength                                                Min. 800V-AC

Insulation Resistance                                                 >5w
Sheath temperature of Heating element                    Max. 750C

Variation                                                                    Round - 1mm, 1.5mm & 1.8mm
Rectangular - 1.3 x 2.1

Clamping Style                                                          Screw Clamp & Axial Clamp

Unheated Length                                                      5" & 7"
HUSKEY HOT RUNNER REPLACEMENT HEATERS
  • COMPLETELY INTERCHANGEABLE WITH ORIGINAL
    OEM EQUIPMENT

  • USES THE SAME THERMOCOUPLE AND RETAINING
    CAP

  •  FASTER RECOVERY DUE TO HIGHER THERMO MASS

  •  DESIGNED TO PROVIDE A BETTER HEAT PROFILE
Bi-Metal Heaters are a direct replacement for existing Husky 750 series heaters.  This design
enhances performance by providing additional thermo mass allowing for an overall better heat
profile and faster recovery times for high temperature applications.

The nickel plated inner busing not only offers an improvement in high temperature application.  It
also provides more controllability over the full temperature spectrum than the original OEM
aluminum version, this results in a smoother operation process.
HUSKY HOT RUNNER REPLACEMENT HEATERS
